LASER Trigger (T305E)

Details
Written by: Newton C. Braga

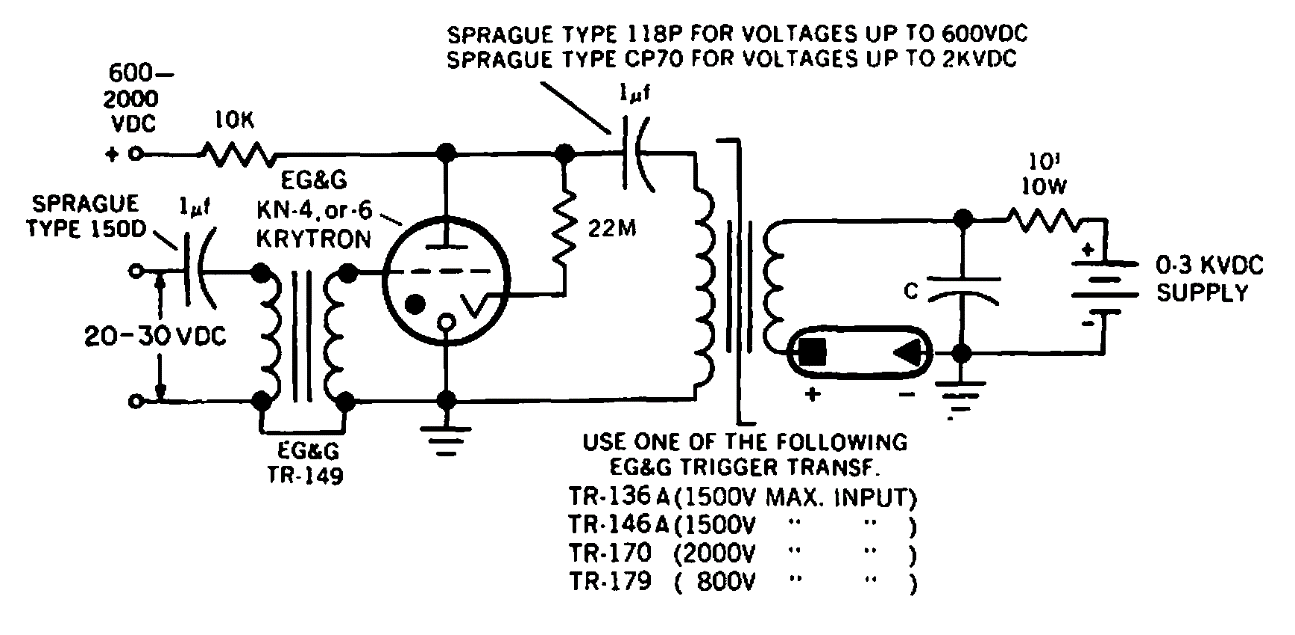

     This circuit was found in a 1967 documentation. It is intended for triggering a xenon LASER. Observe the high operating voltages of the circuit. The components used are uncommon today.
