Electrometer (T310E)

Details
Written by: Newton C. Braga

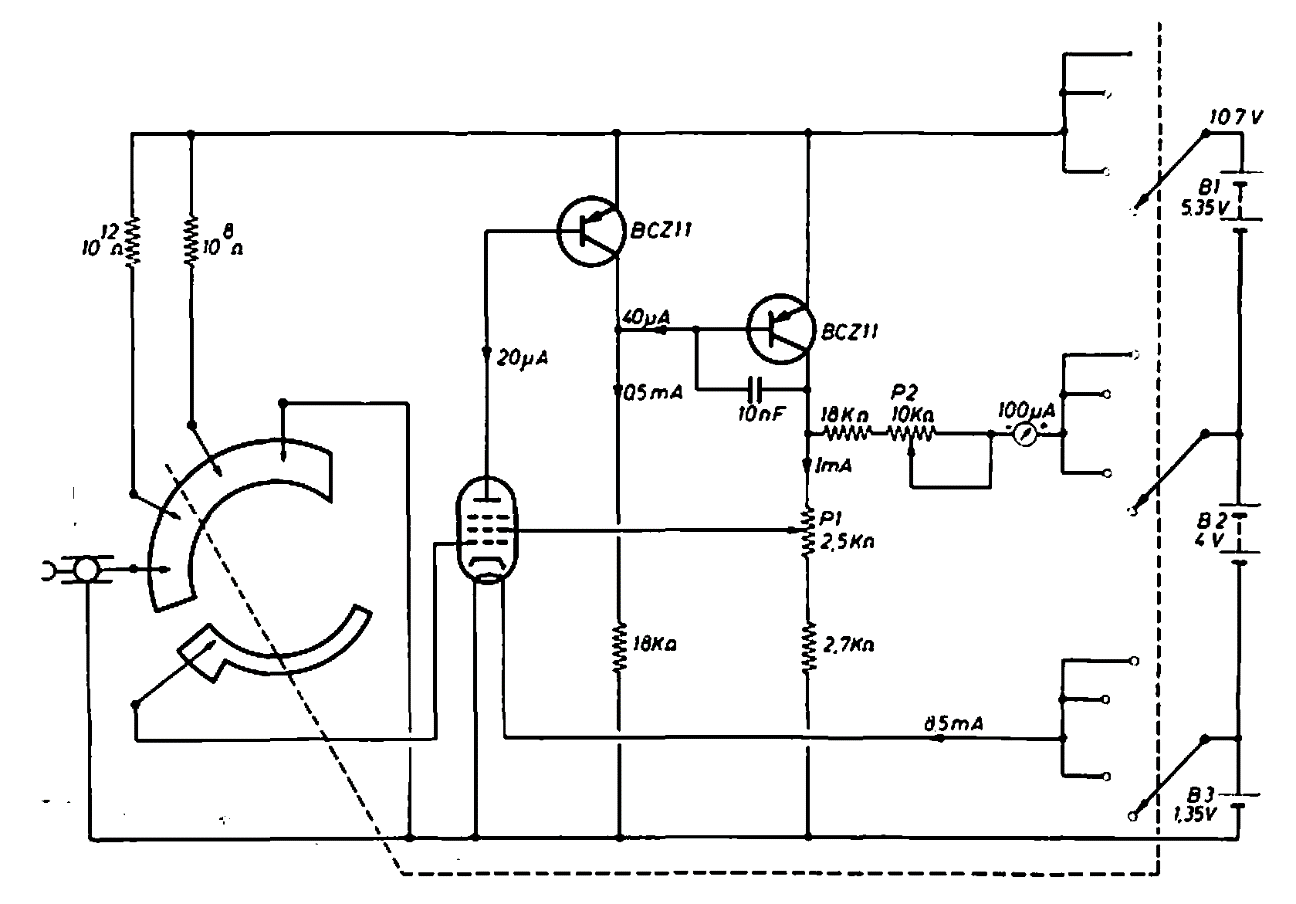

     This 1965 circuit uses a Philips 4068 tube to measure extremely small charges. The circuit has as indicator a micro ammeter and the transistors are of the time.
