Complete Radiation Detector (T1780E)

Details
Written by: Newton C. Braga

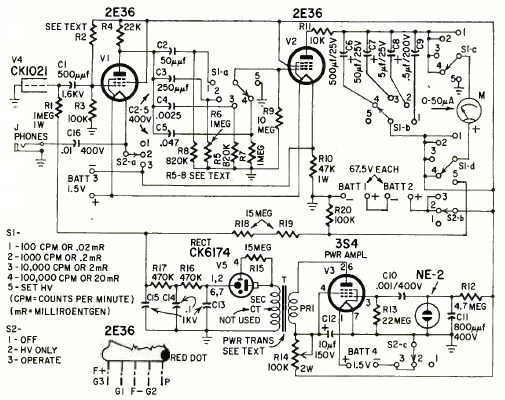

This sophisticated radiation detector circuit was published in Radio Electronics magazine in September 1962. The circuit is powered by two 67.5 V batteries and a 1.5 V battery for the heaters.
