Vibrato (CB6713E)

Details
Written by: Newton C. Braga

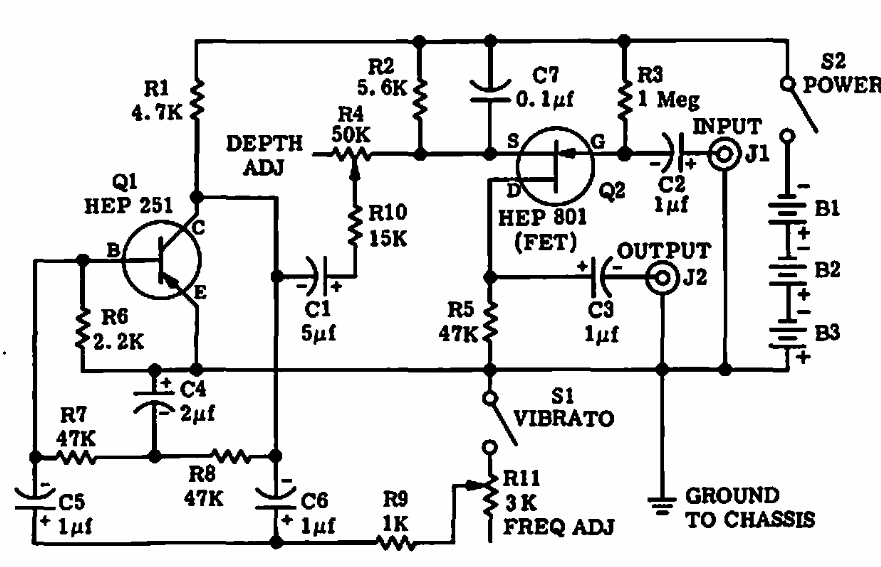

     This vibrato circuit was found in Motorola's 1966 documentation. The circuit uses transistors of the time that can be replaced with current common types. Power is done with 3 9V batteries.
