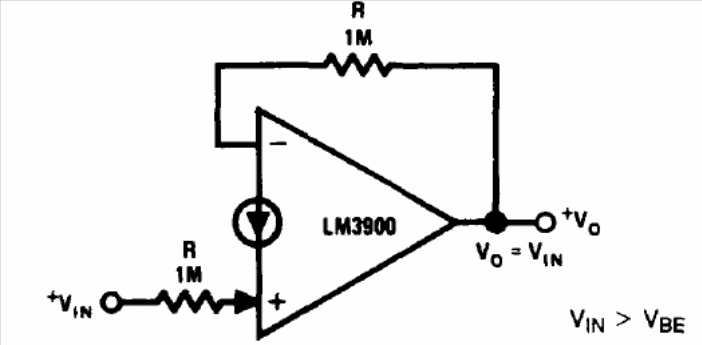

LM3900 Buffer (CB14186E)

We found the configuration below, with unit gain, in the National Semiconductor Linear Applications Handbook.

| Clique na imagem para ampliar |
