This TTL oscillator can be used as clock in many applications. The output signal is square and the circuit must be powered from a 5 V supply. The trimmer capacitor adjust the circuit for best start.

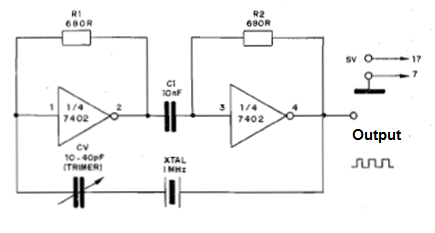

1 MHz XTAL Oscillator using the 7402 (CB787E)
- Details
- Written by: Newton C. Braga
