Lux Meter (CIR814E)

Details
Written by: Newton C. Braga

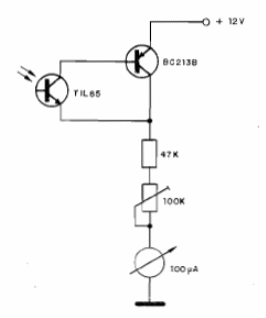

This circuit is suggested by Texas Instruments in his Optoelectronics Sourcebook. Any photo transistor can be used and the transistor can also be a BC558. The meter is an analog type with end of scale of 100 µA.
