CMOS Driver (CB13776E)

Details
Written by: Newton C. Braga

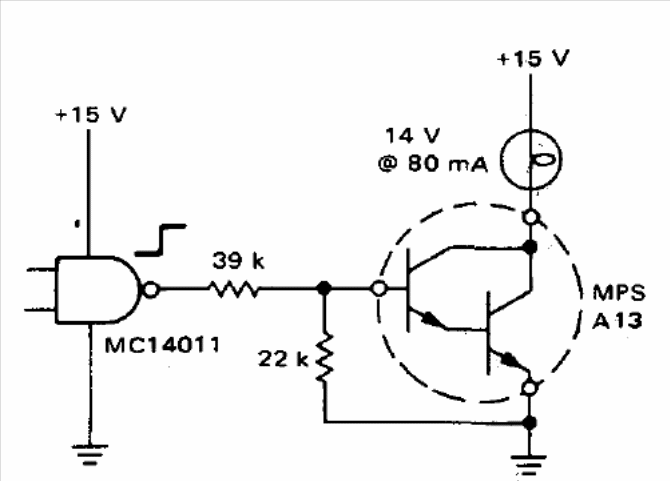

This circuit is from a 1976 Motorola CMOS manual. It can be implemented with modern Darlingtons like those in the Texas TIP series. The load current depends only on the Darlington transistor.






| Clique na imagem para ampliar |
