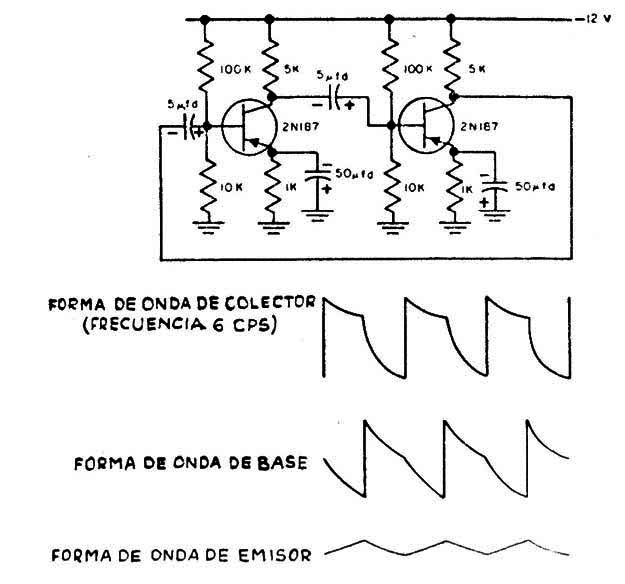

Thes astable was found in old publication of 1968. The circuit uses general purpose germanium transistor and the waveshapes of the outputs are shown in the figure. Frequency is about 6 Hz, but can be changing replacing the capacitors.
Pulse Generator (CB923E)
- Details
- Written by: Newton C. Braga
