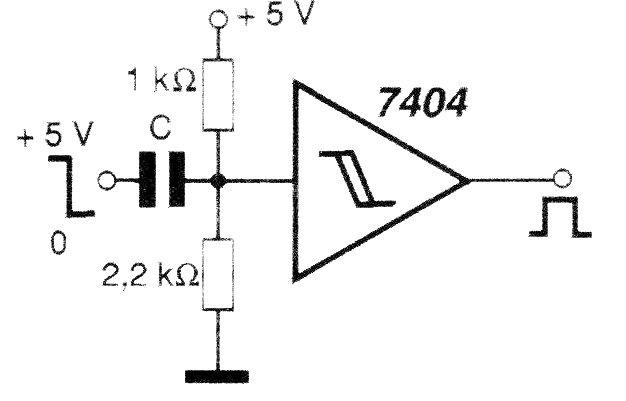

Being excited, this TTL circuit produces an output pulse whose duration is basically determined by the capacitor. The circuit is TTL and must therefore be powered by a voltage of 5 V. The circuit can be used as a debouncer switch.
Half Monostable (CB17582E)
- Details
- Written by: Newton C. Braga
