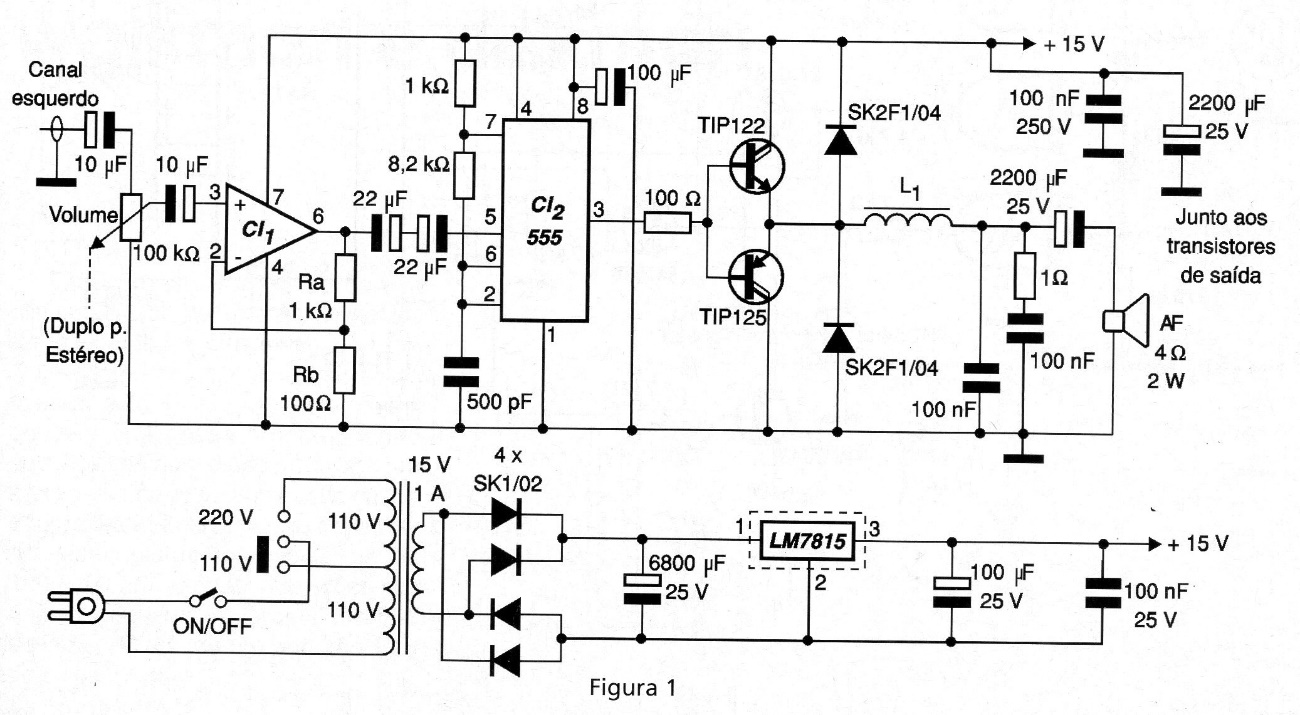

This circuit provides a power of the order of 2 W, characterized by high performance. The output transistors must be equipped with heat sinks and powered by voltages from 12 to 15 V. The circuit is from 2002 documentation. In it, the audio signals modulate a 555 as an oscillator.
