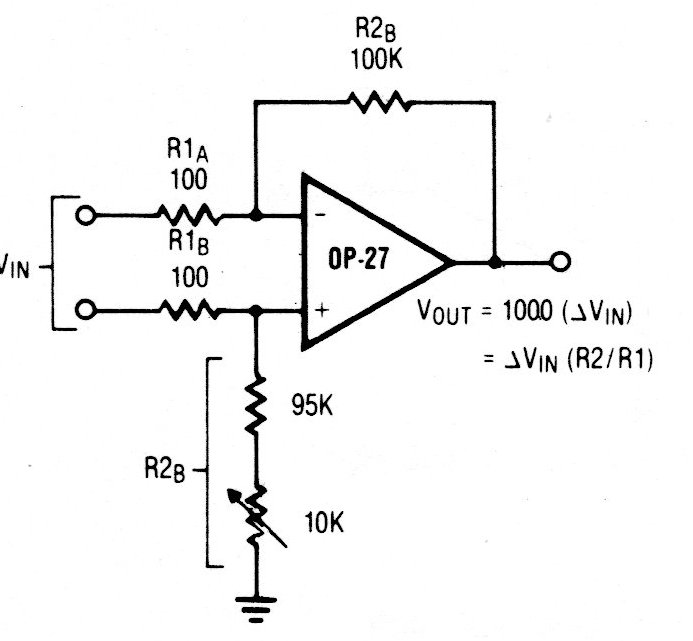

The operational amplifier used is not common today, but the circuit can be implemented with modern operational ones. The gain is 1000 and the source must be symmetrical.
| Clique na imagem para ampliar |
Difference amplifier OP27 (CB19721E)
- Details
- Written by: Newton C. Braga
