1 kHz Band Pass Filter (CB19689E)

Details
Written by: Newton C. Braga

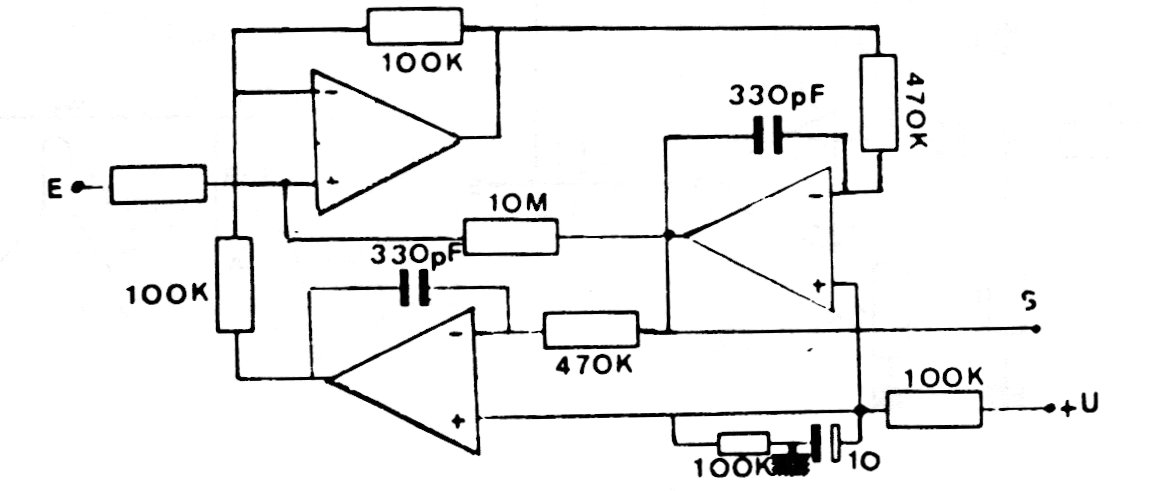

This filter has the components calculated for the frequency of 1 kHz but can be changed. The input resistor can be 100k and the source symmetrical. Any operational amplifier can be used.
