Thermostatic control with mercury sensor (CB21388E)

Details
Written by: Newton C. Braga

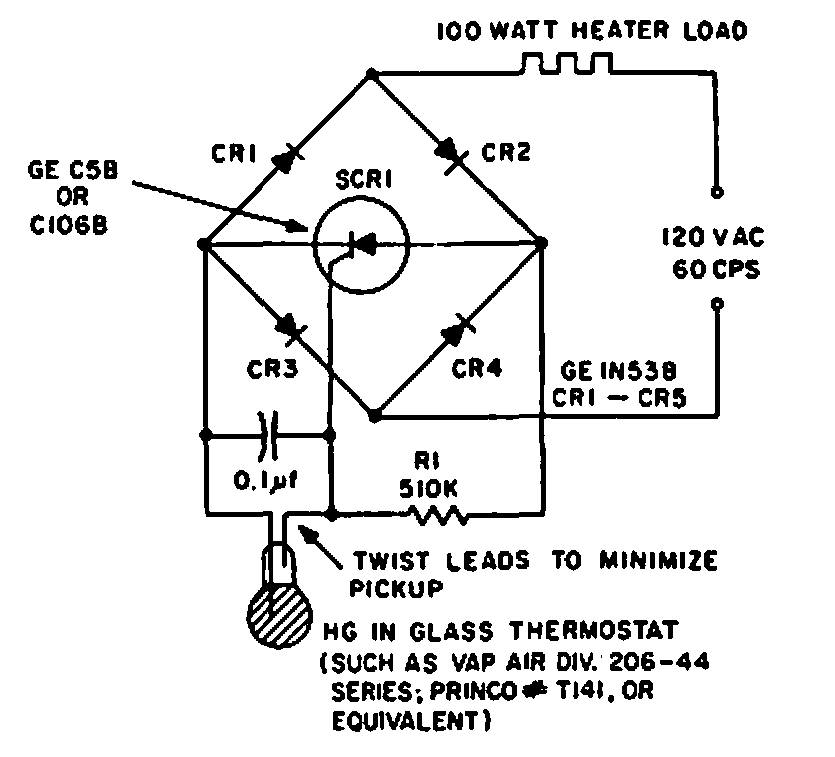

This former temperature sensor with a mercury sensor was found in a General Electric documentation from 1967. The SCR must match the load.
