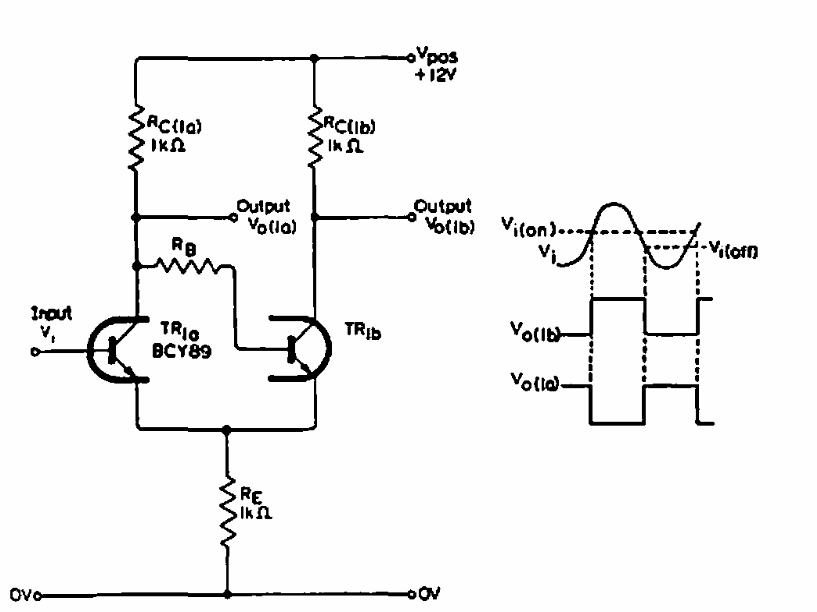

In the figure we have the way to use the transistors of an old-paired pair as a trigger circuit. The circuit is by Philips from an old documentation.
| Clique na imagem para ampliar |
Schmitt trigger (CB21475E)
- Details
- Written by: Newton C. Braga
In the figure we have the way to use the transistors of an old-paired pair as a trigger circuit. The circuit is by Philips from an old documentation.
