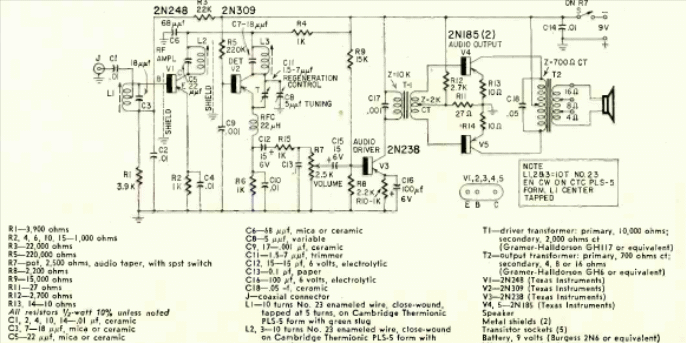

This circuit is from a Radio Electronics from February 1959. The circuit has a speaker output and good sensitivity. Power is supplied from a 9 V battery.
| Clique na imagem para ampliar |
10 meters band receiver (CB23590E)
- Details
- Written by: Newton C. Braga
