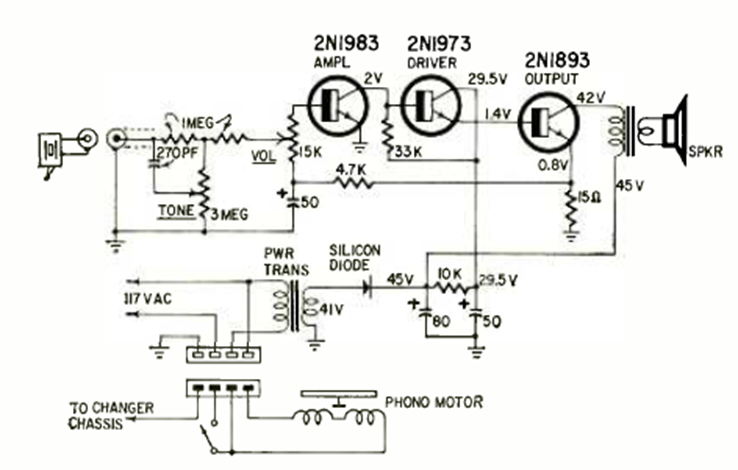

This audio amplifier circuit was found in Radio Electronics magazine from June 1966. The circuit is a commercial RCA type and is powered by mains power.
| Clique na imagem para ampliar |
Phono amplifier (CB23747E)
- Details
- Written by: Newton C. Braga
