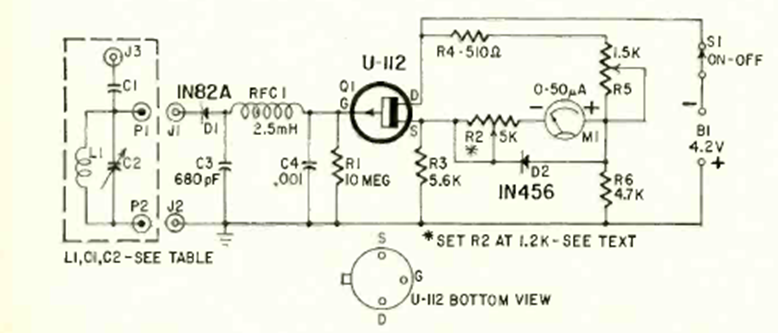

This field strength meter circuit was found in the March 1968 Radio Electronics magazine. The transistor used is a field effect transistor and can be replaced with a modern type. The coil determines the tuned frequency range.
