Sound activated switch (CB22200E)

Details
Written by: Newton C. Braga

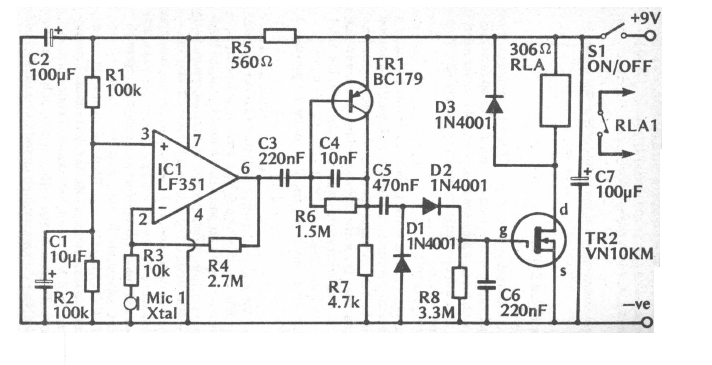

This sonic key or vox was found in old English documentation. The operational admits equivalent as well as the transistors. The microphone is crystal.




| Clique na imagem para ampliar |
