Photo flip flop (CB23611E)

Details
Written by: Newton C. Braga

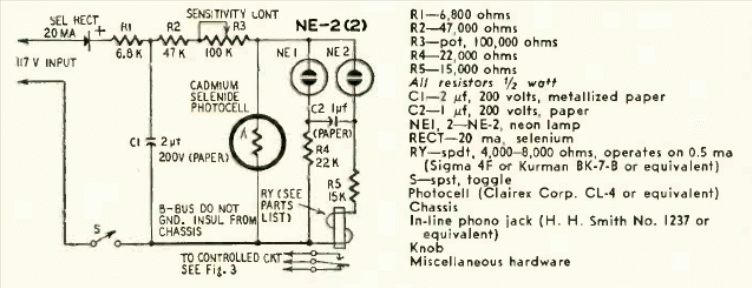

This flip-flop controlled by an LDR-type photocell was found in Radio Electroinics magazine from June 1959. Note that it can be powered from the mains and directly controls a sensitive relay.
