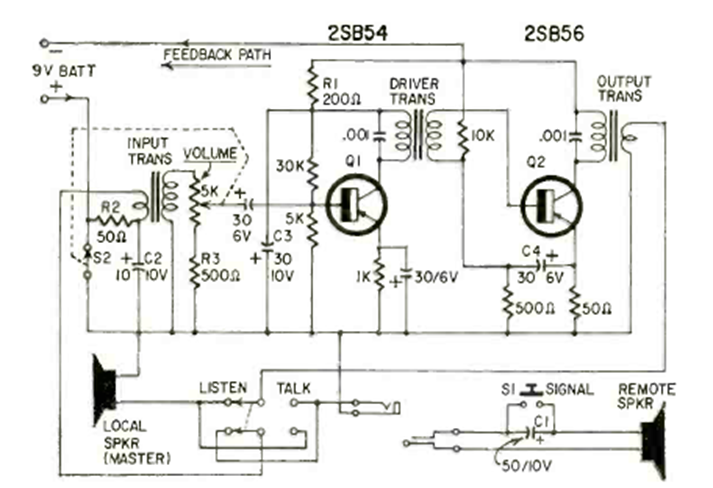

This wired intercom circuit was found in a March 1965 Radio Electronics. The circuit uses two transistors and the maximum distance between stations depends on the loss in the wires. Cables do not need to be shielded.
| Clique na imagem para ampliar |
