400,000 ohms per volt meter (CB23711E)

Details
Written by: Newton C. Braga

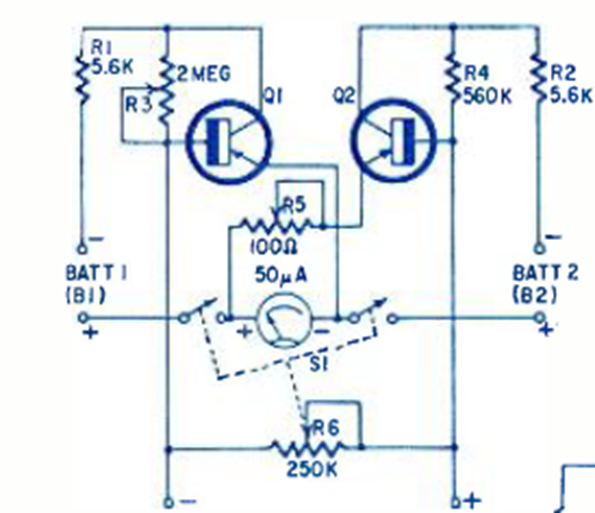

This adapter circuit for measuring voltages was found in Radio Electronics from April 1966. The sensitive 50 uA instrument can be replaced with the lower current scale of a common multimeter.
