Ultrasensitive receiver CK722 (CB23715E)

Details
Written by: Newton C. Braga

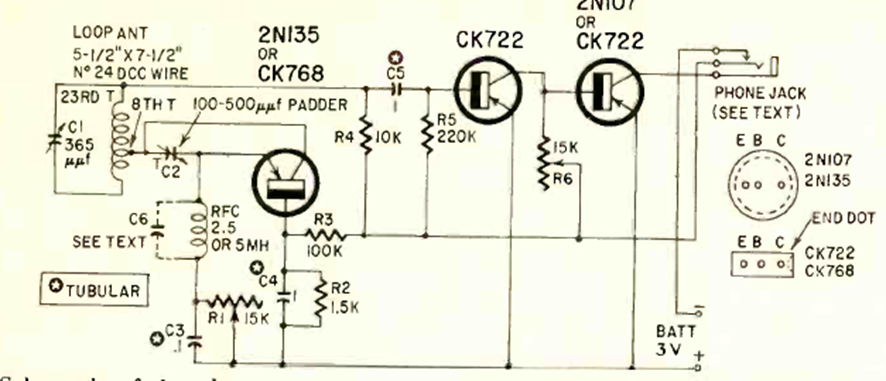

This sensitive receiver for the medium wave range was found in Radio Electronics magazine from December 1960. The circuit has a headphone output and is powered by just 3 V.
