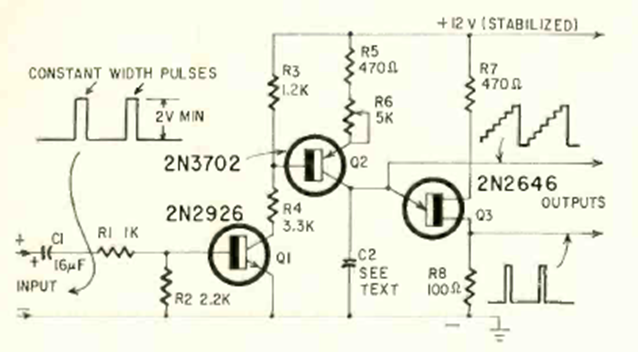

This frequency divider circuit that generates a ladder-shaped signal was found in the June 1968 Radio Electronics magazine. The frequency of the input signal must be considered when choosing C2.
Ladder Generator 2N2646 (CB23914E)
