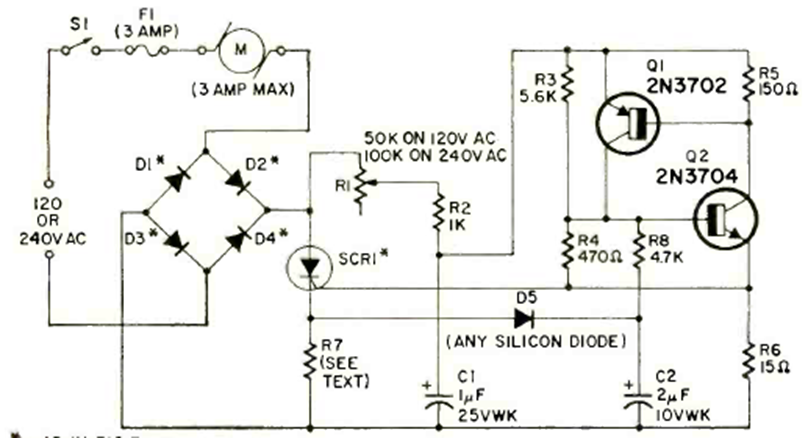

This circuit simulates a unijunction transistor trigger with two bipolar transistors. The circuit uses diodes that must have the current according to the load. The circuit is used to control universal motors or as a dimmer.
