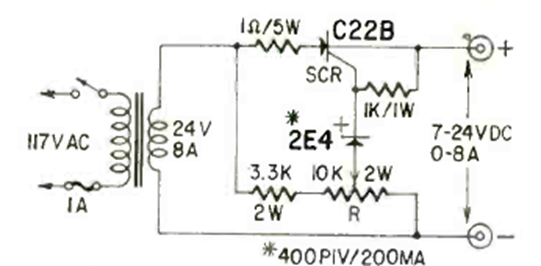

This circuit uses an SCR as a rectifier and controls the charge of a 7 to 24 V battery. The circuit is from a Radio Electronics from June 1964. SCRs such as TIC106 can be used. The control potentiometer is a wire type.
