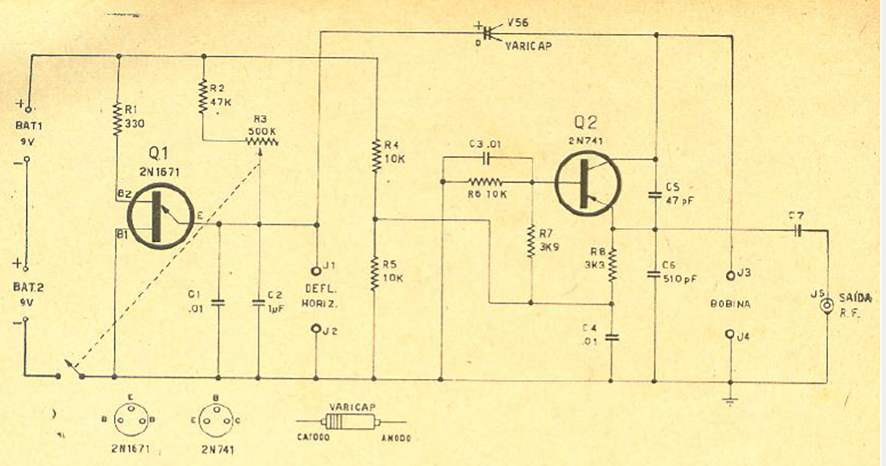

Sweep Generator (CB23581E)

This circuit is from documentation from 1965. However, it can be created with modern transistors. Power comes from two 9 V batteries.
