Delayed relay 2N2646 (CB23913E)

Details
Written by: Newton C. Braga

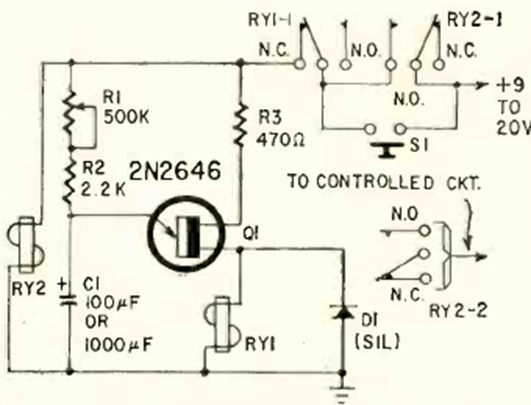

This other circuit from the June 1968 Radio Electronics magazine has a driver transistor and a latch system. The circuit provides delays of up to 8 minutes depending on the value of C1.
