Unijunction Dimmer Simulated (CB23966E)

Details
Written by: Newton C. Braga

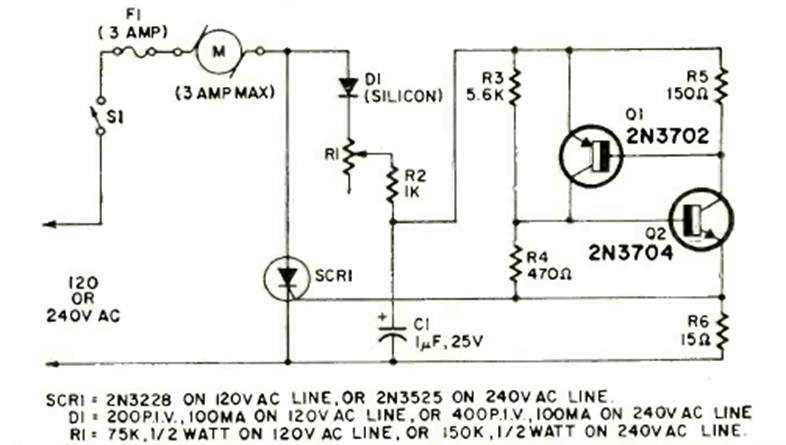

This circuit simulates a unijunction transistor with two bipolar transistors. We found it in the July 1969 Radio Electronics magazine. The circuit controls the speed of a motor or the brightness of a light bulb.




| Clique na imagem para ampliar |
