10 V Transformerless Power Supply (CB23987E)

Details
Written by: Newton C. Braga

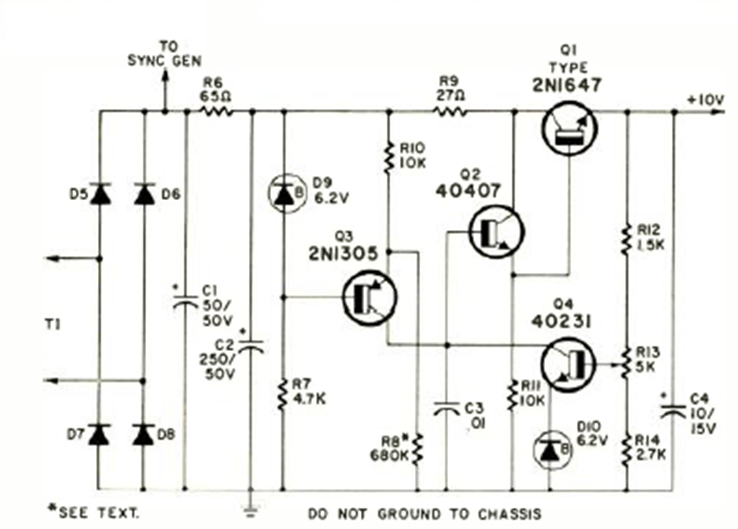

Described in the December 1969 Radio Electronics magazine, this circuit is intended to supply the previous circuit. The circuit is not isolated from the power grid.
