1 to 5 minutes timer (CB22110E)

Details
Written by: Newton C. Braga

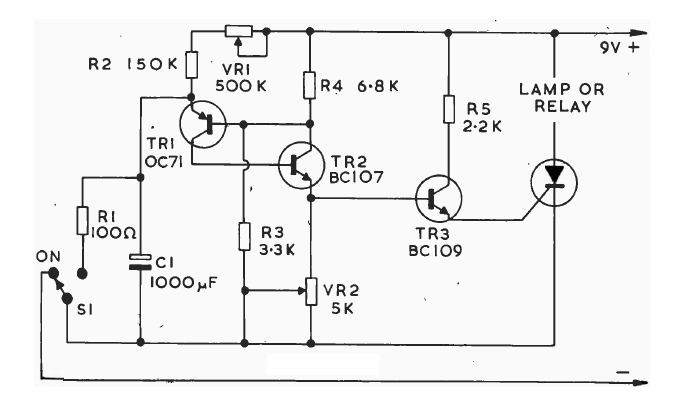

This SCR timer was found in an old English documentation. The SCR can be the TUIC106 and modern equivalent transistors like the BC557 for TR1 and BC547 for the others.




| Clique na imagem para ampliar |
