1 Transistor Transmitter (CB23543E)

Details
Written by: Newton C. Braga

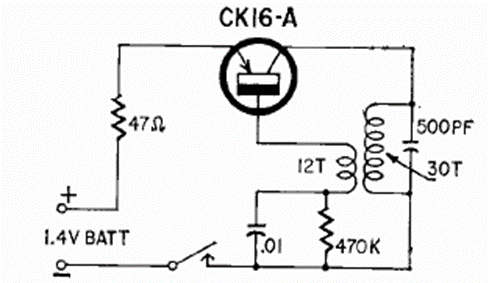

This blocking oscillator circuit was found in a Radio Electronics from November 1963. The frequency depends on the coil and any general-purpose transistor can be used. The power is very low.
