Pulse Amplitude Comparator (CB23834E)

Details
Written by: Newton C. Braga

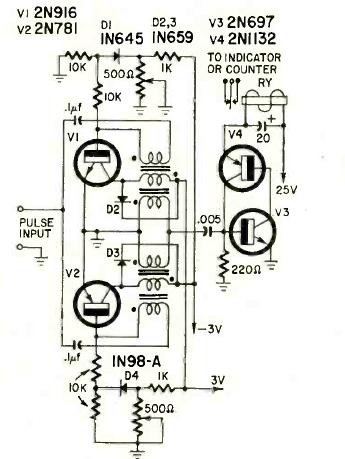

This circuit for activating a relay was found in a Radio Electronics magazine from August 1962. The transistors are from the time and the relay is sensitive depending on the power supply.
