Timer (CB22197E)

Details
Written by: Newton C. Braga

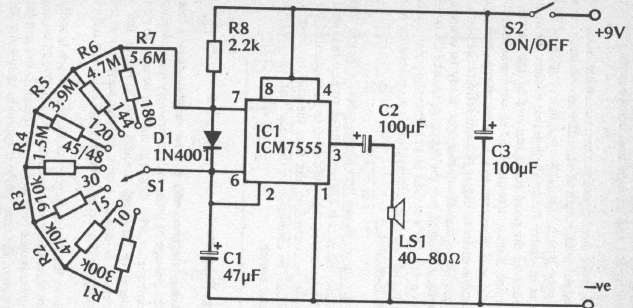

This circuit uses a selector switch to select resistors for timings given in seconds. Capacitor C1 can be changed to other timing ranges.
