Divide by 4 with the 7473 (CB22442E)

Details
Written by: Newton C. Braga

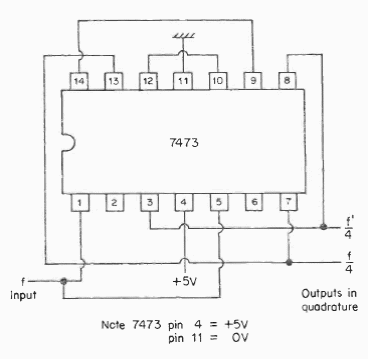

This TTL circuit provides quadrature outputs. The maximum frequency depends on the TTL family used. Food also depends on the family.
