SCR motor control (CB23564E)

Details
Written by: Newton C. Braga

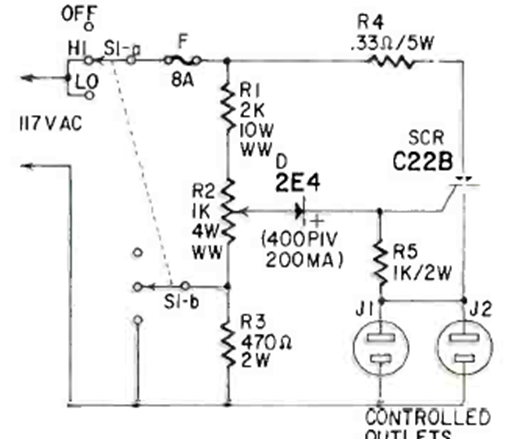

This circuit was obtained from Radio Electronics magazine of June 1964. The SCR may be a modern general purpose sensitive type and the diode is of the rectifier type. Maximum power depends on the employed SCR.
