High impedance voltmeter (CB23618E)

Details
Written by: Newton C. Braga

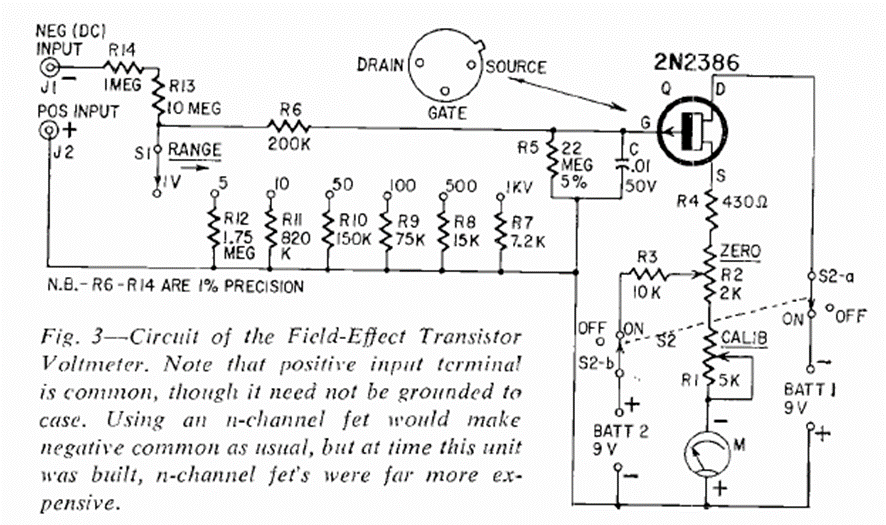

We found this circuit in Radio Electronics magazine from November 1964. The circuit already uses a FET, one of the first available. It can be created with any modern FET and its function is to activate a sensitive 100 uA instrument.




| Clique na imagem para ampliar |
