Passage counter (CB23639E)

Details
Written by: Newton C. Braga

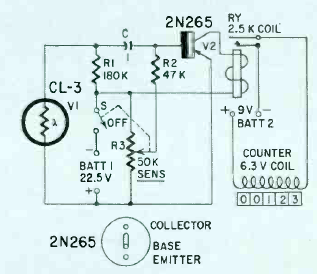

This circuit that drives an electromechanical counter of the time was found in Radio Electronics magazine from September 1959. The sensor is an LDR of the time.
