Super simple amplifier (CB23699E)

Details
Written by: Newton C. Braga

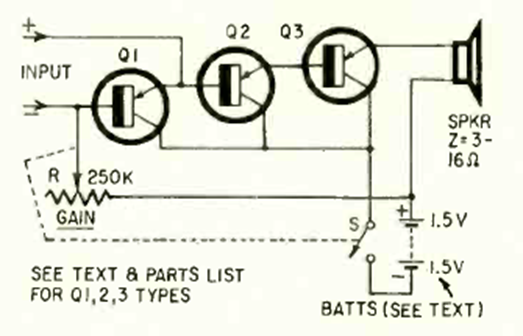

This is a high gain circuit with 3 transistors connected in direct coupling. The circuit is from a Radio Electronics from February 1966. The transistors are types of general use at the time.
