Signal injector (CB23745E)

Details
Written by: Newton C. Braga

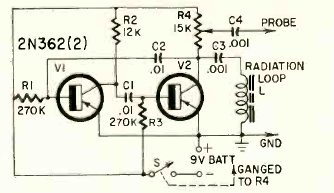

This simple signal injector circuit was found in Radio Electronics magazine from June 1961. It consists of an oscillator with two transistors generating a signal rich in harmonics.
