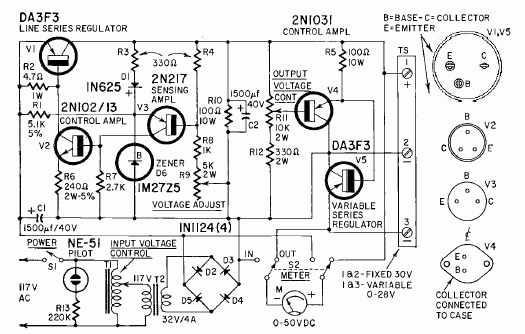

Power supply from 0 to 30 V x 3 A (CB23795E)

Details
Written by: Newton C. Braga



This bench power supply was found in Radio Electronics magazine from February 1962. The transistors are from the time. The power transistor must be mounted on a heatsink.
