DC DC power supply (CB3880E)

Details
Written by: Newton C. Braga

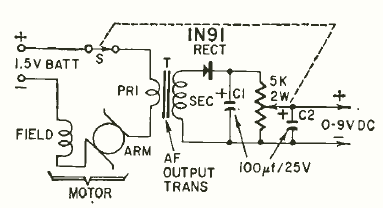

This small inverter uses the commutation of a motor's brushes to perform the conversion, working like a vibrator. The circuit is from a Radio Electronics from 1963.
