Transmitter Monitor (CB23890E)

Details
Written by: Newton C. Braga

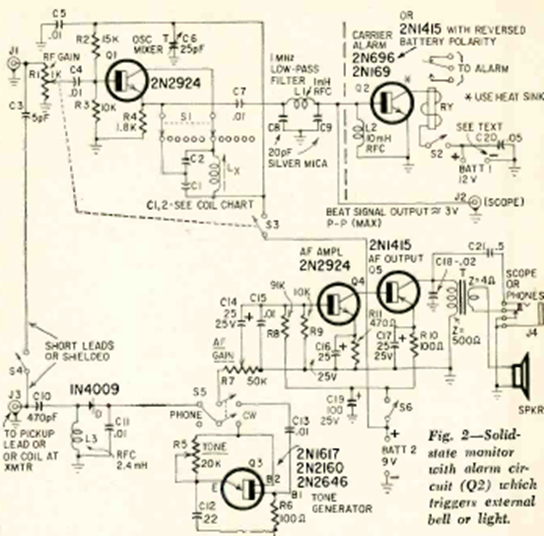

The purpose of this receiver is to monitor the signal from a nearby transmitter. It was published in an article in Radio Electronics magazine in December 1967. Transistors are types of the time.
