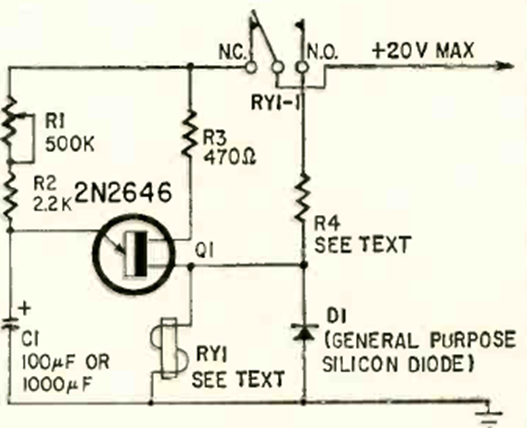

This unijunction transistor circuit was found in the Radio Electronics magazine from June 1968. The relay is a sensitive type that determines R4 according to the voltage. The delay ranges from 3 seconds to 8 minutes depending on the R1 setting.
Delayed relay 2N2646 (CB23912E)
