Audio generator CK722 (CB23659E)

Details
Written by: Newton C. Braga

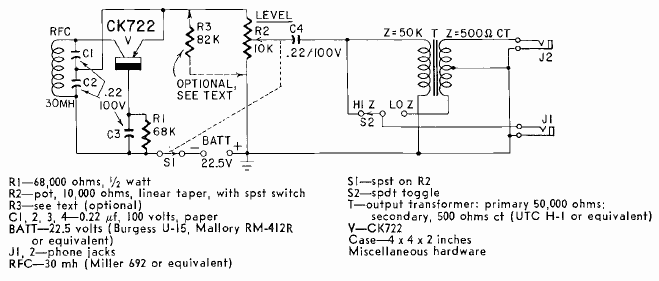

This circuit is from a Radio Electronics from March 1960. The generator works with a 22.5 V battery, generating good intensity signals determined by the LC circuit.
