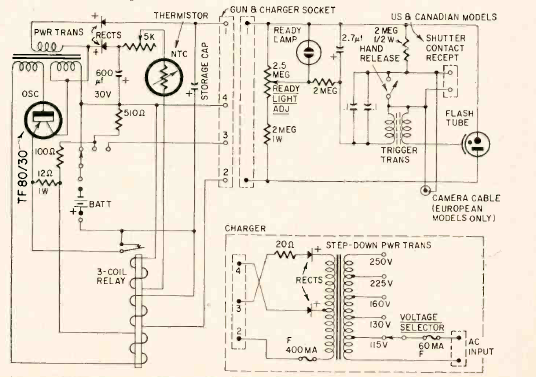

This 60’s commercial flash was found in the march 1961 Radio Electronics Magazine. The circuit uses only one transistor and a high voltage transformer. A power supply input is provided to power it from the power grid.
Commercial flash (CB23724E)
- Details
- Written by: Newton C. Braga
