Micro amplifier (CB23733E)

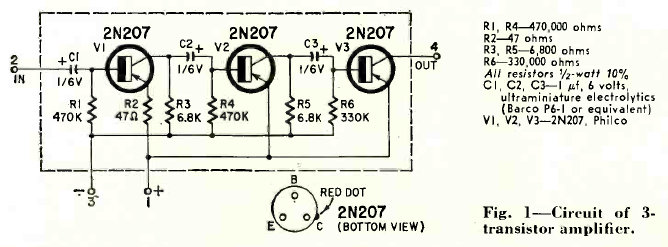

This direct coupled amplifier using 3 transistors and low voltage power was found in the April 1961 Radio Electronics magazine.

| Clique na imagem para ampliar |
