Oscillator with SCR (CB22094E)
- Details
- Written by: Newton C. Braga

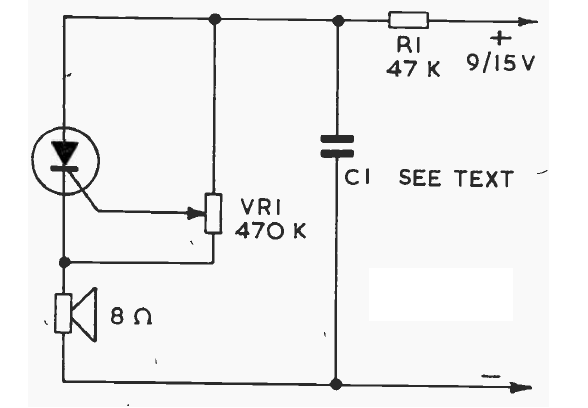

This SCR relaxation oscillator was found in old documentation. The SCR can be TIC106 and the capacitor C1 can be from 10 nF to 470 nF for audio frequencies.
