Drum synthesizer (CB22204E)

Details
Written by: Newton C. Braga

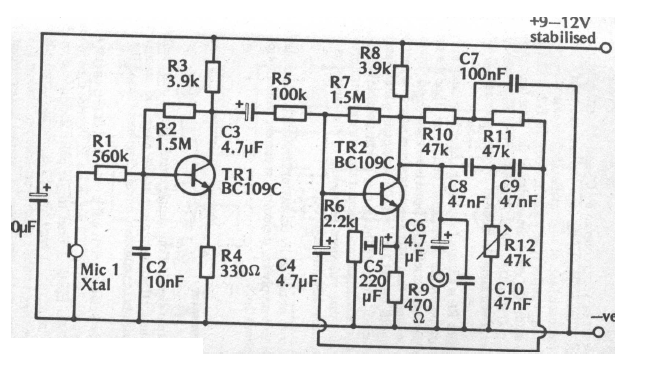

Found in an English publication from the 1980s, this circuit can be built with equivalent transistors such as the BC549. The signal must be applied to an external amplifier.




| Clique na imagem para ampliar |
