Half adder (CB22441E)

Details
Written by: Newton C. Braga

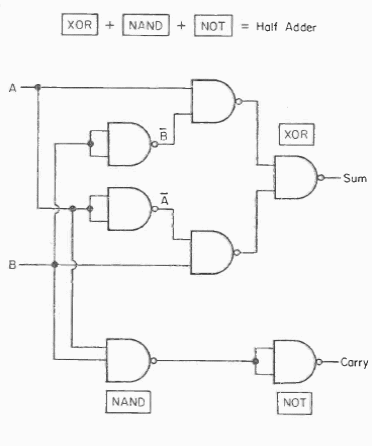

This “Half adder” circuit uses NAND gates from a 7400. The power supply must be 5 V.
